#include <stdint.h>
#include "politician_compat.h"
#include <functional>

Include dependency graph for PoliticianTypes.h:

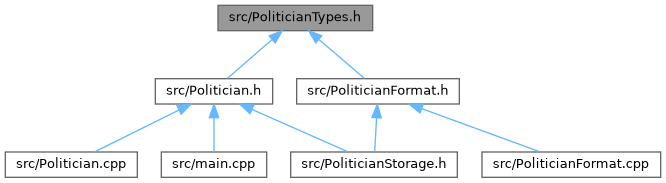

This graph shows which files directly or indirectly include this file:

Classes
struct	politician::Config
	Configuration for the Politician engine. More...

struct	politician::ApRecord
	Snapshot of a discovered Access Point from the internal cache. More...

struct	politician::Stats
	Cumulative frame and capture counters for the engine session. More...

struct	politician::HandshakeRecord
	A captured handshake or PMKID record delivered to the EapolCb callback. More...

struct	politician::AttackResultRecord
	Identifies the AP and failure reason for a failed attack, delivered to the AttackResultCb callback. More...

struct	politician::ClientRecord
	Snapshot of a client station observed associated with an AP. More...

struct	politician::RogueApRecord
	Fired when a second BSSID advertising the same SSID is observed on the same channel. More...

struct	politician::KarmaRecord
	Delivered to the KarmaCb callback when the KARMA responder replies to a named probe request. More...

struct	politician::EapIdentityRecord
	A harvested 802.1X Enterprise plaintext identity, delivered to the IdentityCb callback. More...

struct	politician::ProbeRequestRecord
	A probe request frame observed on the air, delivered to the ProbeRequestCb callback. More...

struct	politician::DisruptRecord
	A deauthentication or disassociation frame observed on the air, delivered to the DisruptCb callback. More...

struct	politician::WpsRecord
	WPS M1 device attributes harvested from an EAP-WSC exchange. More...

struct	politician::MsChapRecord
	Bare EAP-MSCHAPv2 challenge/response pair harvested passively. More...

struct	politician::DeviceFingerprint
	One fingerprint entry in the built-in or user-defined database. More...

struct	politician::DeviceRecord
	A matched device, delivered to the DeviceFoundCb callback. More...

union	politician::HandshakeRecord.__unnamed3__

union	politician::HandshakeRecord.__unnamed5__

Namespaces
namespace	politician

Macros
#define	CAP_PMKID 0x01

#define	CAP_EAPOL 0x02

#define	CAP_EAPOL_CSA 0x03

#define	CAP_EAPOL_HALF 0x04

#define	CAP_EAPOL_GROUP 0x05

#define	CAP_SAE 0x06

#define	ENC_OPEN 0

#define	ENC_WEP 1

#define	ENC_WPA 2

#define	ENC_WPA2 3

#define	ENC_ENT 4

#define	ENC_OWE 5

#define	ATTACK_PMKID 0x01

#define	ATTACK_CSA 0x02

#define	ATTACK_PASSIVE 0x04

#define	ATTACK_DEAUTH 0x08

#define	ATTACK_STIMULATE 0x10

#define	ATTACK_BTM 0x20

#define	ATTACK_ALL 0x3F

#define	LOG_FILTER_HANDSHAKES 0x01

#define	LOG_FILTER_PROBES 0x02

#define	LOG_FILTER_BEACONS 0x04

#define	LOG_FILTER_PROBE_REQ 0x08

#define	LOG_FILTER_MGMT_DISRUPT 0x10

#define	LOG_FILTER_ALL 0xFF

#define	FP_MATCH_OUI 0x01

#define	FP_MATCH_PROBE_SSID 0x02

#define	FP_MATCH_HT_CAP 0x04

#define	FP_MATCH_RATES 0x08

#define	FP_MATCH_IE_FLAGS 0x10

#define	FP_IEF_NO_HT 0x01

#define	FP_IEF_NO_EXT_CAP 0x02

#define	FP_IEF_HAS_WMM 0x04

#define	FP_IEF_HAS_WPS 0x08

Typedefs
using	politician::LogCb = std::function< void(const char *msg)>

typedef void(*	politician::ApFoundCb) (const ApRecord &ap)

typedef int(*	politician::TargetScoreCb) (const ApRecord &ap, const char *vendor)

typedef void(*	politician::PacketCb) (const uint8_t *payload, uint16_t len, int8_t rssi, uint8_t channel, uint32_t ts_usec)

typedef void(*	politician::EapolCb) (const HandshakeRecord &rec)

typedef void(*	politician::IdentityCb) (const EapIdentityRecord &rec)

typedef void(*	politician::ProbeRequestCb) (const ProbeRequestRecord &rec)

typedef void(*	politician::DisruptCb) (const DisruptRecord &rec)

typedef void(*	politician::WpsCb) (const WpsRecord &rec)

typedef void(*	politician::MsChapCb) (const MsChapRecord &rec)

typedef void(*	politician::AttackResultCb) (const AttackResultRecord &rec)

typedef void(*	politician::ClientFoundCb) (const ClientRecord &rec)

using	politician::RogueApCb = std::function< void(const RogueApRecord &rec)>

using	politician::KarmaCb = std::function< void(const KarmaRecord &rec)>

Enumerations
enum	politician::Error { politician::OK = 0 , politician::ERR_WIFI_INIT = 1 , politician::ERR_INVALID_CH = 2 , politician::ERR_NOT_ACTIVE = 3 , politician::ERR_ALREADY_CAPTURED = 4 , politician::ERR_NOT_FOUND = 5 , politician::ERR_MAX_INSTANCES = 6 , politician::ERR_INVALID_ARG = 7 , politician::ERR_QUEUE_FULL = 8 }

enum	politician::DisconnectStrategy : uint8_t { politician::STRATEGY_AUTO_FALLBACK = 0 , politician::STRATEGY_SIMULTANEOUS = 1 }

enum	politician::AttackResult : uint8_t { politician::RESULT_PMKID_EXHAUSTED = 1 , politician::RESULT_CSA_EXPIRED = 2 }

Functions
int	politician::validateConfig (const Config &cfg, const char **out, uint8_t maxOut)
	Validates a Config struct and returns human-readable warning strings for values that will be silently clamped or that may cause unexpected behavior.

Variables
static const uint8_t	politician::CIPHER_UNKNOWN = 0

static const uint8_t	politician::CIPHER_TKIP = 1
	TKIP (00-0F-AC:2) — legacy, crackable offline.

static const uint8_t	politician::CIPHER_CCMP = 2
	CCMP/AES (00-0F-AC:4) — current standard.

static const uint8_t	politician::EAP_METHOD_IDENTITY = 0x01
	EAP Identity (always 0x01 for harvested records)

static const uint8_t	politician::EAP_METHOD_TLS = 0x0D
	EAP-TLS (RFC 5216) — mutual cert auth.

static const uint8_t	politician::EAP_METHOD_TTLS = 0x15
	EAP-TTLS (RFC 5281) — outer tunnel, inner MSCHAPv2.

static const uint8_t	politician::EAP_METHOD_PEAP = 0x19
	PEAP (draft-josefsson-pppext-eap-tls-eap) — outer tunnel.

static const uint8_t	politician::EAP_METHOD_MSCHAPV2 = 0x1A
	Bare EAP-MSCHAPv2 (no tunnel — crackable)

Class Documentation

◆ politician::Config

struct politician::Config

Configuration for the Politician engine.

Definition at line 106 of file PoliticianTypes.h.

Class Members
uint32_t	ap_expiry_ms = 300000
uint8_t	btm_burst_count = 8
uint16_t	btm_disassoc_timer = 3
uint8_t	capture_filter = LOG_FILTER_HANDSHAKES \| LOG_FILTER_PROBES
bool	capture_group_keys = false
bool	capture_half_handshakes = false
uint8_t	csa_beacon_count = 8
uint8_t	csa_deauth_count = 15
uint32_t	csa_wait_ms = 4000
uint8_t	deauth_burst_count = 16
uint8_t	deauth_reason = 7
bool	deauth_reason_cycling = true
uint8_t	enc_filter_mask = 0xFF
uint8_t	fish_max_retries = 2
uint32_t	fish_timeout_ms = 2000
uint16_t	hop_dwell_ms = 200
uint16_t	hop_max_dwell_ms = 400
uint16_t	hop_min_dwell_ms = 50
bool	karma_enabled = false
uint8_t	karma_max_ssids = 16
bool	karma_open_only = true
uint32_t	m1_lock_ms = 800
uint8_t	max_total_attempts = 0
uint8_t	min_beacon_count = 0
int8_t	min_rssi = -100
uint16_t	probe_aggr_interval_s = 30
uint32_t	probe_hidden_interval_ms = 0
bool	require_active_clients = false
uint32_t	session_timeout_ms = 60000
bool	skip_immune_networks = true
bool	smart_hopping = true
const char *	soft_ap_ssid = nullptr
char	ssid_filter[33] = {}
bool	ssid_filter_exact = true
uint8_t	sta_filter[6] = {}
bool	unicast_deauth = true

◆ politician::ApRecord

struct politician::ApRecord

Snapshot of a discovered Access Point from the internal cache.

Populated by getAp(), getApByBssid(), and the ApFoundCb callback.

Definition at line 189 of file PoliticianTypes.h.

Class Members
uint16_t	beacon_count	Number of beacons observed from this AP in the current session.
uint16_t	beacon_interval
uint8_t	bssid[6]
uint8_t	capture_count	Number of successful handshake/PMKID captures for this BSSID.
bool	captured
uint8_t	chan_util
uint8_t	chan_width
uint8_t	channel
char	country[3]
uint8_t	enc
uint32_t	first_seen_ms
bool	ft_capable
bool	is_he
bool	is_hidden
bool	is_vht
uint32_t	last_attack_ms	millis() of the most recent attack initiation (0 = never attacked)
uint32_t	last_seen_ms
uint8_t	max_rate_mbps
uint8_t	network_type
bool	pmf_capable
bool	pmf_required
int8_t	rssi
char	ssid[33]
uint8_t	ssid_len
uint16_t	sta_count
uint8_t	total_attempts
uint8_t	venue_group
uint8_t	venue_type
bool	wps_enabled

◆ politician::Stats

struct politician::Stats

Cumulative frame and capture counters for the engine session.

Accessible via getStats(), reset with resetStats().

Definition at line 223 of file PoliticianTypes.h.

Class Members
uint32_t	beacons
uint32_t	captures
uint16_t	channel_frames[200]
uint32_t	ctrl
uint32_t	data
volatile uint32_t	dropped
uint32_t	eapol
uint32_t	failed_csa
uint32_t	failed_pmkid
uint32_t	mgmt
uint32_t	pmkid_found
uint32_t	rb_max
uint32_t	sae_found
uint32_t	total

◆ politician::HandshakeRecord

struct politician::HandshakeRecord

A captured handshake or PMKID record delivered to the EapolCb callback.

The type field identifies the capture path; fields not relevant to that path are zeroed.

Definition at line 247 of file PoliticianTypes.h.

Class Members
union HandshakeRecord.__unnamed3__	__unnamed__
union HandshakeRecord.__unnamed5__	__unnamed__
uint8_t	anonce[32]
uint8_t	bssid[6]
uint8_t	channel
uint8_t	cipher	Pairwise cipher suite: CIPHER_TKIP / CIPHER_CCMP / CIPHER_UNKNOWN.
uint8_t	eapol_m3[256]
uint16_t	eapol_m3_len
uint8_t	eapol_m4[256]
uint16_t	eapol_m4_len
uint8_t	enc
bool	has_anonce
bool	has_m3
bool	has_m4
bool	has_mic
bool	has_snonce
bool	is_full
uint8_t	mic[16]
uint8_t	pmkid[16]
int8_t	rssi
uint8_t	sae_seq
uint8_t	snonce[32]
char	ssid[33]
uint8_t	ssid_len
uint8_t	sta[6]
uint8_t	type

◆ politician::AttackResultRecord

struct politician::AttackResultRecord

Identifies the AP and failure reason for a failed attack, delivered to the AttackResultCb callback.

Definition at line 297 of file PoliticianTypes.h.

Class Members
uint8_t	bssid[6]
AttackResult	result
char	ssid[33]
uint8_t	ssid_len

◆ politician::ClientRecord

struct politician::ClientRecord

Snapshot of a client station observed associated with an AP.

Delivered to the ClientFoundCb callback and enriched with vendor lookup, timing, and MAC-randomization detection.

Definition at line 311 of file PoliticianTypes.h.

Class Members
uint8_t	bssid[6]	BSSID of the AP this client is associated with.
uint32_t	first_seen_ms	millis() when this client was first seen on this BSSID
uint32_t	last_seen_ms	millis() of the most recent frame from this client
bool	rand_mac	True if the locally administered bit is set (MAC randomization)
int8_t	rssi	Signal strength at time of observation (dBm)
uint8_t	sta[6]	Client (station) MAC address.
char	vendor[32]	OUI vendor string; empty if POLITICIAN_NO_DB is defined.

◆ politician::RogueApRecord

struct politician::RogueApRecord

Fired when a second BSSID advertising the same SSID is observed on the same channel.

This indicates a potential evil twin or rogue AP. Both the known AP and the newcomer are included.

Definition at line 327 of file PoliticianTypes.h.

Class Members
uint8_t	channel
uint8_t	known_bssid[6]
uint8_t	rogue_bssid[6]
int8_t	rssi
char	ssid[33]
uint8_t	ssid_len

◆ politician::KarmaRecord

struct politician::KarmaRecord

Delivered to the KarmaCb callback when the KARMA responder replies to a named probe request.

Contains the client that probed and the SSID that was echoed.

The engine injects a probe response and one beacon spoofed as an AP with that exact SSID and an open authentication mode, enticing the client to auto-associate.

Definition at line 352 of file PoliticianTypes.h.

Class Members
uint8_t	ap_mac[6]
uint8_t	channel
uint8_t	client[6]
int8_t	rssi
char	ssid[33]
uint8_t	ssid_len

◆ politician::EapIdentityRecord

struct politician::EapIdentityRecord

A harvested 802.1X Enterprise plaintext identity, delivered to the IdentityCb callback.

Definition at line 377 of file PoliticianTypes.h.

Class Members
uint8_t	bssid[6]
uint8_t	channel
uint8_t	client[6]
uint8_t	eap_method	EAP method negotiated by the AP (EAP_METHOD_* constant); 0 if not yet observed.
char	identity[65]
int8_t	rssi

◆ politician::ProbeRequestRecord

struct politician::ProbeRequestRecord

A probe request frame observed on the air, delivered to the ProbeRequestCb callback.

Definition at line 388 of file PoliticianTypes.h.

Class Members
uint8_t	channel
uint8_t	client[6]
bool	rand_mac
int8_t	rssi
char	ssid[33]
uint8_t	ssid_len

◆ politician::DisruptRecord

struct politician::DisruptRecord

A deauthentication or disassociation frame observed on the air, delivered to the DisruptCb callback.

Definition at line 399 of file PoliticianTypes.h.

Class Members
uint8_t	bssid[6]
uint8_t	channel
uint8_t	dst[6]
bool	rand_mac
uint16_t	reason
int8_t	rssi
uint8_t	src[6]
uint8_t	subtype

◆ politician::WpsRecord

struct politician::WpsRecord

WPS M1 device attributes harvested from an EAP-WSC exchange.

Delivered to the WpsCb callback when a WPS Enrollee sends its M1 message. Only M1 (Enrollee → AP) is unencrypted; subsequent messages cannot be parsed passively.

Definition at line 416 of file PoliticianTypes.h.

Class Members
uint16_t	auth_type_flags
uint8_t	bssid[6]
uint8_t	channel
uint16_t	config_methods
char	device_name[33]
char	manufacturer[65]
char	model_name[33]
char	model_number[33]
uint16_t	primary_dev_type_cat
uint8_t	rf_bands
int8_t	rssi
char	serial_number[33]
uint8_t	sta[6]

◆ politician::MsChapRecord

struct politician::MsChapRecord

Bare EAP-MSCHAPv2 challenge/response pair harvested passively.

Only available when the AP serves MSCHAPv2 without a TLS tunnel (no PEAP/TTLS). The nt_response can be cracked offline with tools like asleap or hashcat (-m 5500).

Crack with hashcat: echo "username::::peer_challenge_hex:nt_response_hex:server_challenge_hex" | hashcat -m 5500

Definition at line 442 of file PoliticianTypes.h.

Class Members
uint8_t	bssid[6]
uint8_t	channel
uint8_t	nt_response[24]
uint8_t	peer_challenge[16]
int8_t	rssi
uint8_t	server_challenge[16]
uint8_t	sta[6]
char	username[65]

◆ politician::DeviceFingerprint

struct politician::DeviceFingerprint

One fingerprint entry in the built-in or user-defined database.

Definition at line 470 of file PoliticianTypes.h.

Class Members
uint8_t	confidence
uint8_t	ht_cap_info[2]
uint8_t	ht_cap_mask[2]
uint8_t	ie_flags
uint8_t	ie_flags_mask
const char *	model
uint8_t	oui[3]
const char *	probeSsid
uint8_t	rate_sig[4]
const char *	vendor

◆ politician::DeviceRecord

struct politician::DeviceRecord

A matched device, delivered to the DeviceFoundCb callback.

Definition at line 485 of file PoliticianTypes.h.

Class Members
uint8_t	channel
uint8_t	confidence
uint8_t	mac[6]
uint8_t	match_flags
char	model[32]
int8_t	rssi
char	vendor[32]

◆ politician::HandshakeRecord.unnamed3

union politician::HandshakeRecord.__unnamed3__

Definition at line 263 of file PoliticianTypes.h.

Class Members
uint8_t	eapol_m2[256]
uint8_t	sae_data[256]

◆ politician::HandshakeRecord.unnamed5

union politician::HandshakeRecord.__unnamed5__

Definition at line 269 of file PoliticianTypes.h.

Class Members
uint16_t	eapol_m2_len
uint16_t	sae_len

Macro Definition Documentation

◆ ATTACK_ALL

#define ATTACK_ALL 0x3F

Definition at line 45 of file PoliticianTypes.h.

◆ ATTACK_BTM

#define ATTACK_BTM 0x20

Definition at line 44 of file PoliticianTypes.h.

◆ ATTACK_CSA

#define ATTACK_CSA 0x02

Definition at line 40 of file PoliticianTypes.h.

◆ ATTACK_DEAUTH

#define ATTACK_DEAUTH 0x08

Definition at line 42 of file PoliticianTypes.h.

◆ ATTACK_PASSIVE

#define ATTACK_PASSIVE 0x04

Definition at line 41 of file PoliticianTypes.h.

◆ ATTACK_PMKID

#define ATTACK_PMKID 0x01

Definition at line 39 of file PoliticianTypes.h.

◆ ATTACK_STIMULATE

#define ATTACK_STIMULATE 0x10

Definition at line 43 of file PoliticianTypes.h.

◆ CAP_EAPOL

#define CAP_EAPOL 0x02

Definition at line 23 of file PoliticianTypes.h.

◆ CAP_EAPOL_CSA

#define CAP_EAPOL_CSA 0x03

Definition at line 24 of file PoliticianTypes.h.

◆ CAP_EAPOL_GROUP

#define CAP_EAPOL_GROUP 0x05

Definition at line 26 of file PoliticianTypes.h.

◆ CAP_EAPOL_HALF

#define CAP_EAPOL_HALF 0x04

Definition at line 25 of file PoliticianTypes.h.

◆ CAP_PMKID

#define CAP_PMKID 0x01

Definition at line 22 of file PoliticianTypes.h.

◆ CAP_SAE

#define CAP_SAE 0x06

Definition at line 27 of file PoliticianTypes.h.

◆ ENC_ENT

#define ENC_ENT 4

Definition at line 35 of file PoliticianTypes.h.

◆ ENC_OPEN

#define ENC_OPEN 0

Definition at line 31 of file PoliticianTypes.h.

◆ ENC_OWE

#define ENC_OWE 5

Definition at line 36 of file PoliticianTypes.h.

◆ ENC_WEP

#define ENC_WEP 1

Definition at line 32 of file PoliticianTypes.h.

◆ ENC_WPA

#define ENC_WPA 2

Definition at line 33 of file PoliticianTypes.h.

◆ ENC_WPA2

#define ENC_WPA2 3

Definition at line 34 of file PoliticianTypes.h.

◆ FP_IEF_HAS_WMM

#define FP_IEF_HAS_WMM 0x04

Definition at line 466 of file PoliticianTypes.h.

◆ FP_IEF_HAS_WPS

#define FP_IEF_HAS_WPS 0x08

Definition at line 467 of file PoliticianTypes.h.

◆ FP_IEF_NO_EXT_CAP

#define FP_IEF_NO_EXT_CAP 0x02

Definition at line 465 of file PoliticianTypes.h.

◆ FP_IEF_NO_HT

#define FP_IEF_NO_HT 0x01

Definition at line 464 of file PoliticianTypes.h.

◆ FP_MATCH_HT_CAP

#define FP_MATCH_HT_CAP 0x04

Definition at line 459 of file PoliticianTypes.h.

◆ FP_MATCH_IE_FLAGS

#define FP_MATCH_IE_FLAGS 0x10

Definition at line 461 of file PoliticianTypes.h.

◆ FP_MATCH_OUI

#define FP_MATCH_OUI 0x01

Definition at line 457 of file PoliticianTypes.h.

◆ FP_MATCH_PROBE_SSID

#define FP_MATCH_PROBE_SSID 0x02

Definition at line 458 of file PoliticianTypes.h.

◆ FP_MATCH_RATES

#define FP_MATCH_RATES 0x08

Definition at line 460 of file PoliticianTypes.h.

◆ LOG_FILTER_ALL

#define LOG_FILTER_ALL 0xFF

Definition at line 57 of file PoliticianTypes.h.

◆ LOG_FILTER_BEACONS

#define LOG_FILTER_BEACONS 0x04

Definition at line 54 of file PoliticianTypes.h.

◆ LOG_FILTER_HANDSHAKES

#define LOG_FILTER_HANDSHAKES 0x01

Definition at line 52 of file PoliticianTypes.h.

◆ LOG_FILTER_MGMT_DISRUPT

#define LOG_FILTER_MGMT_DISRUPT 0x10

Definition at line 56 of file PoliticianTypes.h.

◆ LOG_FILTER_PROBE_REQ

#define LOG_FILTER_PROBE_REQ 0x08

Definition at line 55 of file PoliticianTypes.h.

◆ LOG_FILTER_PROBES

#define LOG_FILTER_PROBES 0x02

Definition at line 53 of file PoliticianTypes.h.

Classes

Namespaces

Macros

Typedefs

Enumerations

Functions

Variables
