PoliticianWPS.h File Reference

Opt-in WPS M1 capture utilities for the Politician engine. More...

#include "PoliticianTypes.h"
#include <Arduino.h>

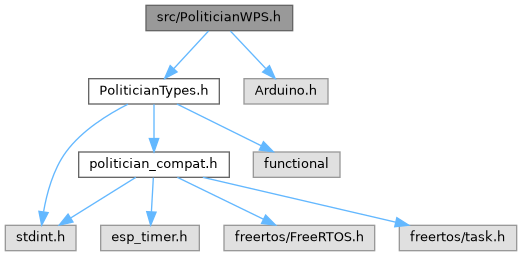

Include dependency graph for PoliticianWPS.h:

Go to the source code of this file.

Namespaces
namespace	politician
namespace	politician::PoliticianWPS

Functions
const char *	politician::PoliticianWPS::devTypeCatStr (uint16_t cat)
const char *	politician::PoliticianWPS::configMethodsStr (uint16_t methods, char *buf, size_t bufSz)
	Returns a compact human-readable string of supported WPS setup methods.
const char *	politician::PoliticianWPS::configMethodsStr (uint16_t methods)
	Compatibility overload using a static buffer (not thread-safe).
template<typename TStream >
void	politician::PoliticianWPS::print (TStream &out, const WpsRecord &rec)
	Pretty-prints a WpsRecord to any Print-compatible stream (Serial, etc.).

Variables
static const uint16_t	politician::PoliticianWPS::CFG_USBA = 0x0001
static const uint16_t	politician::PoliticianWPS::CFG_ETHERNET = 0x0002
static const uint16_t	politician::PoliticianWPS::CFG_LABEL = 0x0004
static const uint16_t	politician::PoliticianWPS::CFG_DISPLAY = 0x0008
static const uint16_t	politician::PoliticianWPS::CFG_EXT_NFC = 0x0010
static const uint16_t	politician::PoliticianWPS::CFG_INT_NFC = 0x0020
static const uint16_t	politician::PoliticianWPS::CFG_NFC_IFACE = 0x0040
static const uint16_t	politician::PoliticianWPS::CFG_PUSH_BUTTON = 0x0080
static const uint16_t	politician::PoliticianWPS::CFG_KEYPAD = 0x0100
static const uint16_t	politician::PoliticianWPS::CFG_VIRTUAL_PBC = 0x0200
static const uint16_t	politician::PoliticianWPS::CFG_PHYSICAL_PBC = 0x0400
static const uint16_t	politician::PoliticianWPS::CFG_VIRTUAL_PIN = 0x2000
static const uint16_t	politician::PoliticianWPS::CFG_PHYSICAL_PIN = 0x4000
static const uint16_t	politician::PoliticianWPS::AUTH_OPEN = 0x0001
	Open (no authentication)
static const uint16_t	politician::PoliticianWPS::AUTH_WPAPSK = 0x0002
	WPA Personal (PSK)
static const uint16_t	politician::PoliticianWPS::AUTH_SHARED = 0x0004
	Shared Key (deprecated WEP-era)
static const uint16_t	politician::PoliticianWPS::AUTH_WPA = 0x0008
	WPA Enterprise (802.1X)
static const uint16_t	politician::PoliticianWPS::AUTH_WPA2 = 0x0010
	WPA2 Enterprise (802.1X)
static const uint16_t	politician::PoliticianWPS::AUTH_WPA2PSK = 0x0020
	WPA2 Personal (PSK)

Detailed Description

Opt-in WPS M1 capture utilities for the Politician engine.

Include this header alongside Politician.h to enable WPS M1 device fingerprinting. The engine passively captures the first unencrypted EAP-WSC message (M1) sent by a WPS Enrollee, exposing device attributes without any active interaction.

Usage: #include "Politician.h" #include "PoliticianWPS.h" // Add this line

engine.setWpsCallback([](const WpsRecord &rec) { Serial.printf("[WPS] %s by %s (%s)\n", rec.device_name, rec.manufacturer, PoliticianWPS::configMethodsStr(rec.config_methods)); PoliticianWPS::print(Serial, rec); });

Notes:

• Only M1 (Enrollee → AP) is unencrypted and parseable passively.
• Subsequent WPS messages (M2-M8) are encrypted; PIN cracking is not possible passively.
• Enable by calling engine.setWpsCallback() — zero overhead if callback is null.
• WPS exchange occurs during association; channel hopping must be active for discovery.

Definition in file PoliticianWPS.h.
